Handheld XRF Analyzer

Niton™ XL5e Coming Soon

Make light work of heavy industrial tasks with the Thermo Scientific™ Niton™ XL5e Handheld XRF Analyzer. Designed to return lab-quality results, the XL5e offers low limits of detection for a broad range of applications, from verifying pure metals and alloys to screening polluted soils. Powered by a 5W X-ray tube in a featherweight design, it reduces operator fatigue while increasing productivity.

Get A Quote Call Now

Ideal For:

Manufacturing Operations Field Inspections (PMI) Scrap Recycling Mining Exploration

Soil Screening Consumer Goods

Innovative Features & Capabilities

Rapid Results

Powered by a 5W X-ray tube with dynamic current adjustments for optimum sensitivity and real-time results.

Featherweight Design

Small footprint and lightweight build reduce operator fatigue during heavy industrial tasks.

Analytical Performance

Lab-quality results with low limits of detection for metals, alloys, geochemistry, and heavy metal screening.

Rugged & Safe

Standard ProGuard detector protection reduces risk when measuring sharp items. Hot-swap battery keeps you running.

Smart Connectivity

Wi-Fi connectivity automatically transmits data to your computer for streamlined reporting.

Advanced Usability

Vivid interface, micro camera for positioning, and glove-friendly touchscreen with optional directional keys.

Technical Specifications

Weight

2.8 lbs. with battery (1.3 kg)

Dimensions

9.54 x 8.19 x 2.67 in. (242.56 x 208.17 x 67.90 mm)

X-Ray Source

X-Ray Tube: Ag anode (6-50kV, 0-500uA, 5W max)
Filter: Six (6) position filter wheel for enhanced spectral range coverage
Current: Dynamically adjustable current for optimal sensitivity

Detector

High count rate, high resolution, fast silicon drift detector (1 µm graphene window)
Detector ProGuard protection included

Spot Size

8 mm collimation

Analytical Range

Mg-U (Ultra-low light element detection)

Calibration Modes

General metals, light metal quick sort, mining, soils, plastics

Libraries

Default alloy libraries based on SAE, AISI, ASTM, AA, DIN, GB standards
Users may create, clone, and edit libraries

System Check

Built-in standardization and health check verifies system integrity and operating conditions

IP Rating

IP54 (splash and dust proof)

Operating Environment

Temperature: -10 to 50°C
Humidity: 10 to 90% relative humidity non-condensing

Display

Fixed, color, resistive touchscreen display

Power

12V lithium-ion battery, or 12V DC, 3A, 3.6W power supply
Hot swap functionality keeps analyzer powered during battery replacements

Micro Camera

Integrated CCD micro camera for locating and recording measurement positions

Bluetooth

Supports print functionality

Memory / Data Storage

512 MB internal system memory / 16 GB industrial grade storage
Stores approximately 130,000 readings with spectra (fewer if micro images are saved)

Data Entry

Touchscreen keyboard
User customizable data entry
Optional wireless remote barcode reader

Data Transfer

Wi-Fi, USB-c

Operating System

Linux

Support Software

NitonConnect PC software

Security

Password-protected user security

Languages

English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Turkish, Italian

Standard Accessories

Locking shielded carrying case
Two (2) lithium-ion battery packs
One (1) 110/220 VAC battery charger / AC adaptor
Check samples
Safety lanyard
PC connection cable (USB)

Optional Accessories

Thermo Scientific™ portable test stand
Thermo Scientific™ mini test stand
Thermo Scientific™ backscatter shield
Thermo Scientific™ hotwork stand off
Thermo Scientific™ soil guard
Bluetooth printer

Compliance

Compliance CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1:2010

Licensing / Registration

Varies by region, contact your local distributor

Faster. Smarter. More Profitable.

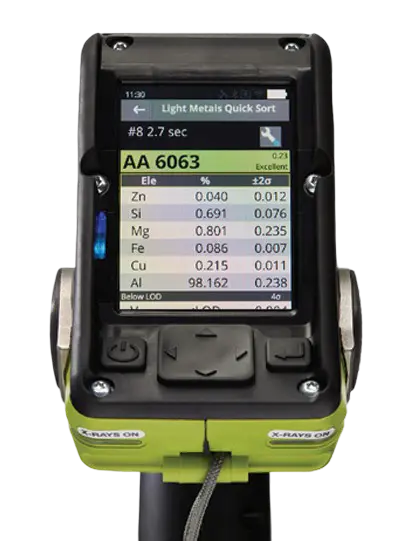

The Light Metal Quick Sort (LMQS) mode, available on the Thermo Scientific™ Niton™ XL5e Handheld XRF Analyzer, is purpose-built for recyclers who require speed and accuracy when identifying aluminum and magnesium alloys and more.

Whether scaling operations or tightening margins, LMQS mode provides an advantage in a competitive market.

Benefits

Rapid Alloy ID

Sort within a few seconds: No delays, no guesswork! Instantly identify aluminum and magnesium alloy grades with the click of a trigger.

Accurate Sorting

Fewer errors, cleaner batches: Avoid contamination between alloy types to help maintain material purity.

Increase Profits

Maximize metal resale value: Correctly sorted alloys command premium prices. Avoid costly mix-ups and boost your bottom line.

Easy to Use

No expertise needed: A user-friendly interface empowers anyone to sort like a pro, no specialized training required.

Versatile

Evaluate multiple light metals: Identify alloy families of other light elements in various scrap types beyond aluminum and magnesium.

Portable

Analyze anywhere: Take the analyzer wherever the scrap is—whether it’s a yard, warehouse, or customer site —for on-the-spot decisions and zero downtime.

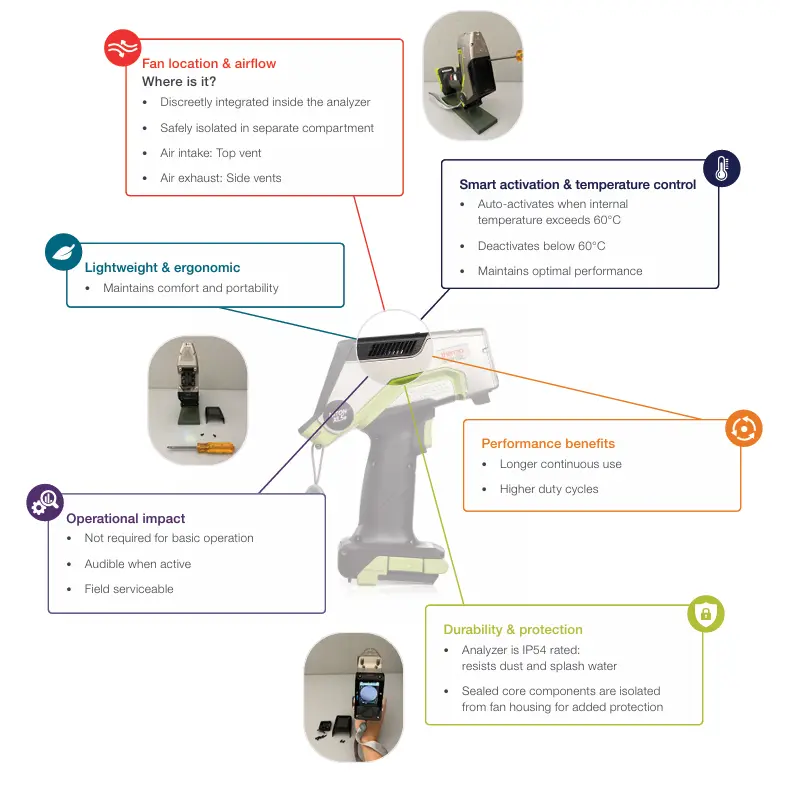

Smart Cooling for Peak Performance

Overheating can compromise analytical performance and damage sensitive components. The Niton XL5e features an advanced smart cooling system that actively manages the instrument's temperature. This ensures consistent, reliable results even during continuous use in hot environments, extending the lifespan of the X-ray tube and detector.

What's In The Box

Shielded Case

2x Li-ion Batteries

Battery Charger

Check Samples

Safety Lanyard

USB Cable

Ready to improve your analysis?

Contact Dhani Enterprises, the authorized partner for Niton in India, to get the best pricing.
